Ferrum HYPSOS Dual
Hybrid Power System for devices from any manufacturer, but best matched with Ferrums own gear - Hypsos. The intelligent power supply to get the best out of your high end stack - now with 2 outputs.

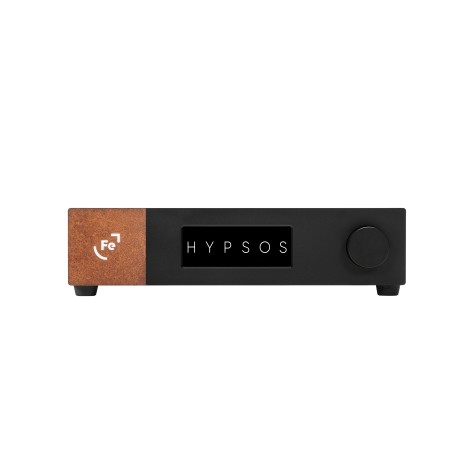

Ferrum HYPSOS Dual
Hybrid Power System — intelligent power tuning, now with dual outputs
Hybrid Power System is Ferrum’s idea of a power supply that communicates directly with the device it powers via dedicated internal traces — delivering the right amount of current exactly when transient demand peaks. Sonically, this translates into a tighter, more dynamic presentation — and the ability to fine-tune the sound beyond EQ by deliberately adjusting the power delivery.
When used with Ferrum’s own devices, you can, for example, set the output voltage between 22–30 V to shift the presentation from “smooth yet detailed” to “brutally detailed, still without sibilance”. It may sound unusual — but it becomes immediately obvious in a listening test.
Devices can be selected on the touchscreen, or — if not listed — powered by manually entering current and amperage values. HYPSOS can also be paired with an Apple remote to put the unit into standby from a distance.
Now with two outputs
Previously, powering two devices from one HYPSOS was possible via a splitter — but not exactly elegant. With ample reserves, HYPSOS can supply a second device reliably. That’s why the HYPSOS Dual features two DC outputs.
Technical Specifications
| Power input | 110–120 V AC & 220–240 V AC / 50–60 Hz (EU/US); 100 V AC / 50–60 Hz (JP) |
| Mains | IEC C14 inlet, fuse holder, power on/off, two-stage EMI filter |
| Mains cable | EU, UK, AU or US |
| DC out cable | 5.5 × 2.5 mm or 5.5 × 2.1 mm DC plug |
| Note (dual outputs) | Voltage is shared across both outputs. Current and power are combined (both outputs together). 4TSD is active on the main output only. |
| DC output voltage range | 5–30 V |
| Max. continuous output power | 60 W |
| Max. continuous output current | 6 A |
| Primary winding fuse (JP) | IEC 5×20 mm, 250 V 3.15 A, slow-blow |
| Primary winding fuse (EU/US) | 250 V 2 A, slow-blow |
| Power consumption | @ 230 V AC / 50 Hz and 12 V DC out: no load (idle) – 6 VA; ~80 W load – 133.9 VA |
| Dimensions (W × D × H) | 21.7 × 20.6 × 5 cm (without knob, feet and connectors) |
| Net weight | 3.05 kg |
