Violectric DHA V590²
DAC/headphone amplifier combo with superb conversion quality and robust amplification.
- ✓ Authorized Dealer · Original Warranty
- ✓ 30-day returns · Free return shipping within the EU
- ✓ Shipping: free to Italy · EU €19, free from €400
- ✓ Installment Payment Available
- Your legal guarantee rights
Secure Payment
VISA
MC
PayPal
GPay
At a glance
- Device type
- DAC/headphone amplifier
- Amplifier technology
- Solid-state
- Headphone outputs
- 4-Pin XLR, 4.4 mm, 6.3 mm
- Built-in DAC
- Yes
- Power
- 4.7 W @ 32 Ω · 1.45 W @ 300 Ω
Violectric DHA V590²
Reference DAC, 32-bit resampler and high-power headphone amplifier
The Violectric DHA V590² combines a high-end D/A converter, 32-bit resampling/reclocking, a preamplifier and a powerful headphone amplifier in one unit. Digital signals enter via XLR, RCA, optical or USB, are processed by the 32-bit resampling/reclocking stage with a femto clock, and are then converted to analog by the ESS Technology ES9026 PRO (up to 384 kHz and DSD-over-PCM (DoP)).
Highlights
- 32-bit resampler/reclocker with up to 180 dB dynamic range for virtually jitter-free playback
- ESS Technology ES9026 PRO DAC with 4× 32-bit converters per channel, –110 dB THD+N and 124 dB dynamic range
- ±18 dB PRE-GAIN for optimal matching with any headphone/source combination
- Motorized Alps RK27 volume control and balance control
- Four amplifier stages with 6400 mW @ 50 Ω and 21 V RMS @ 600 Ω
- DC and overload monitoring, delayed output enabling

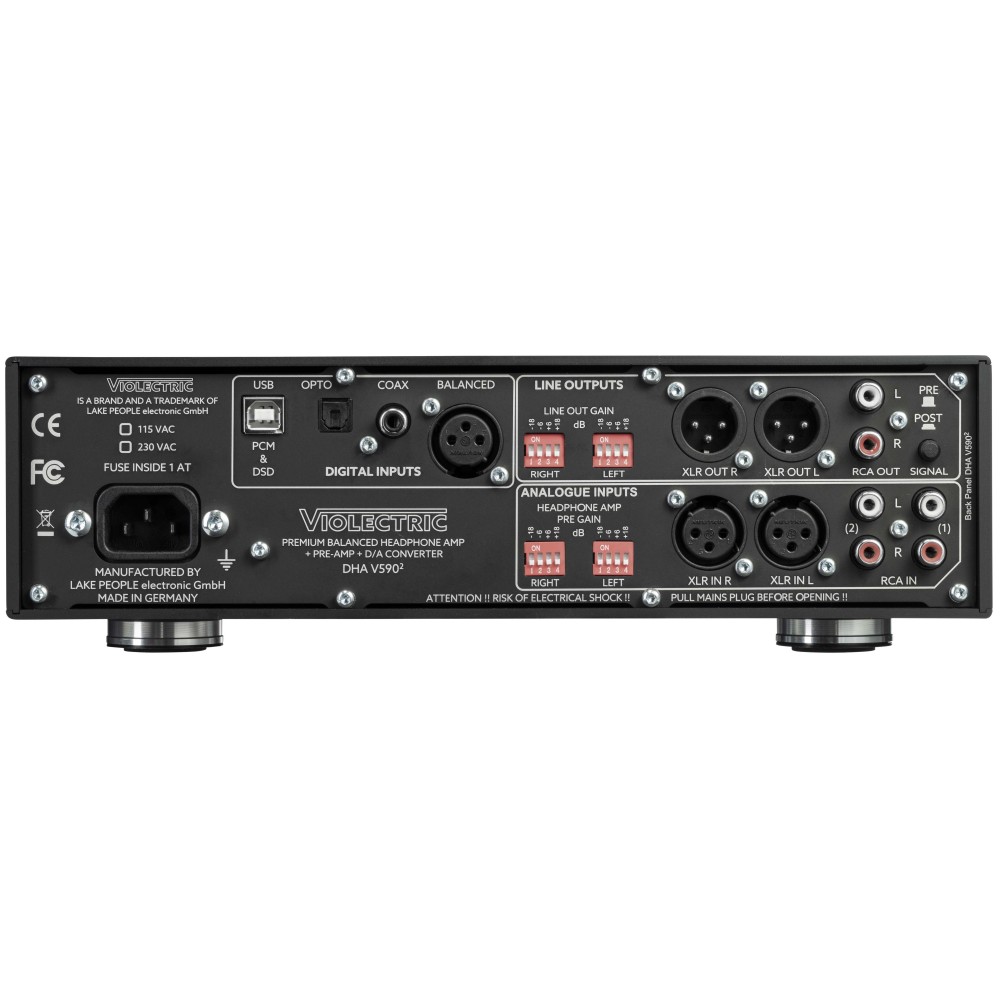

Connections
- Analogue inputs: 2× RCA (unbalanced), 1× XLR (balanced)
- Digital inputs: XLR, coax, optical (24 bit/192 kHz), USB (PCM up to 32 bit/384 kHz, DSD 64–256)
- Headphone outputs: 1× 4-pin XLR (balanced), 1× Pentaconn 4.4 mm (balanced), 1× 6.3 mm (1/4") jack (unbalanced)
- Line-out: 1× RCA (unbalanced), 1× XLR (balanced) (±18 dB adjustable)
With premium components — including two toroidal transformers and more than 35,000 µF of filter capacitance — plus a solid black anodized front panel, the DHA V590² becomes the audiophile hub of any high-end system.
Remote control included for input selection, resampling mode, volume, output selection and mute.
Not sure if the Violectric DHA V590² is the right model for you? In our The Great Violectric Model Comparison we put every model in the lineup head-to-head.
Who is the DHA V590² best suited for?
The DHA V590² is aimed at anyone who wants a single, self-contained hub for the entire headphone chain – from the digital signal all the way to the headphone output. With the strongest analogue amplifier stage in the lineup and a reference-grade DAC (ESS ES9026 PRO), it's the most consistent solution for listeners who want to do without a separate external DAC without sacrificing sound quality.
Technical Data
Analogue Inputs
| Inputs | 1× XLR female (balanced), 2× RCA (unbalanced) |
| Max. input voltage | +21 dBu |
| Input impedance | 10 kΩ |
Digital Inputs
| S/PDIF | 1× balanced, 1× coaxial, 1× optical – up to 24 bit / 192 kHz |
| USB | PCM up to 32 bit / 384 kHz, DSD 64–256 |
| Resampling / Reclocking | 32 bit, up to 180 dB dynamic range |
| D/A converters | 32 bit, 4 converters per channel, –110 dB THD+N, 124 dB dynamic range |
Line Outputs
| Outputs | 1× XLR male (balanced), 1× RCA (unbalanced) |
| Line-out gain | –18 / –12 / –6 / 0 / +6 / +12 / +18 dBr |
| Max. output voltage | +21 dBu |
| Output impedance | 1 Ω |
Headphone Amplifier
| Nominal input sensitivity | +6 dBu |
| Feedback gain | 0 dB unbalanced / +6 dB balanced |
| PRE-GAIN | –18 / –12 / –6 / 0 / +6 / +12 / +18 dBr |
| Frequency range | 5 Hz – 250 kHz (–0.5 dB) |
| Balance | ±6 dB |
| Output impedance | 0.15 Ω unbalanced / 0.3 Ω balanced |
| Damping factor (50 Ω load) | 320 unbalanced / 160 balanced |
| Dynamic range | >131 dB (A-weighted) |
| Noise | < –103 dBu (A-weighted) |
| THD+N (1 kHz / 2×10 V / 100 Ω = 1 W) | < –102 dB / < 0.0008 % |
| THD+N (1 kHz / 2×4 V / 32 Ω = 0.5 W) | < –100 dB / < 0.001 % |
| Crosstalk | –105 dB (1 kHz) / –100 dB (15 kHz) |
| Headphone outputs | 1× 4-pin XLR, 1× Pentaconn (4.4 mm), 1× 1/4" (6.3 mm) jack |
VIO-DHA-V590-2
Data sheet
- Device type
- DAC/headphone amplifier
- Amplifier technology
- Solid-state
- Built-in DAC
- Yes
- DAC architecture
- Delta-sigma
- D/A converter
- ESS ES9026, 4 converters per channel
- Digital inputs
- USB, AES/EBU, coaxial, optical
- Max. resolution
- PCM 384 kHz/32 bit, DSD256
- Analogue outputs
- XLR, RCA
- Output level
- 8.7 V (+21 dBu) max.
- Streaming/network
- No
- Power into 32 Ω
- 4.7 W @ 32 Ω
- Power into 300 Ω
- 1.45 W @ 300 Ω
- Headphone outputs
- 4-Pin XLR, 4.4 mm, 6.3 mm
- Balanced output
- Yes
- Inputs
- XLR, 2× RCA, USB, coaxial, optical
- Output impedance
- 0.15 / 0.3 Ω
- Pre-amp output
- Yes
- Product type
- DAC/amp combo
