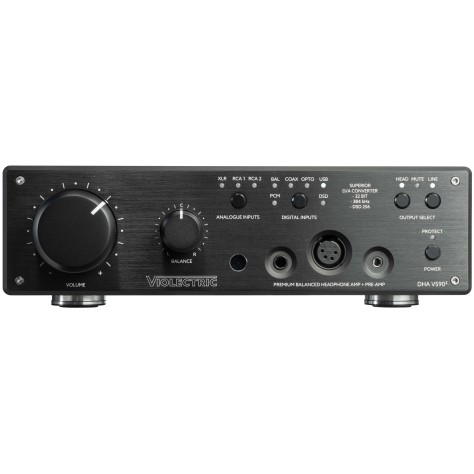

Violectric DHA V590² PRO – Level Audio
Violectric

Violectric DHA V590² PRO

Reference headphone amplifier with D/A converter and 256-step relay volume control for perfect channel matching.

Violectric
Sorry, This item is out of stock.
€3,899.00
Tax included Delivery in approx. 2 weeks

Request Special Price

Please enter your email address to receive your special price:

Success!

Your special price has been sent to your email!

Please check your inbox for the discount code and link.

On Backorder

  • ✓ Authorized Dealer · Original Warranty
  • ✓ 30-Day Returns · Free Shipping
  • ✓ Installment Payment Available
Secure Payment VISA MC PayPal GPay

Violectric DHA V590² PRO

Reference DAC, 32-bit resampler and high-power headphone amplifier

The Violectric DHA V590² PRO combines a high-end D/A converter, 32-bit resampling/reclocking, a preamplifier and a powerful headphone amplifier in one unit. Digital signals enter via XLR, RCA, optical or USB, are processed by the 32-bit resampling/reclocking stage with a femto clock, and are then converted to analog by the ESS Technology ES9026 PRO (up to 384 kHz and DSD-over-PCM (DoP)).

What is the difference to the standard version?
The only – but decisive – difference is the volume control: while the Violectric DHA V590² uses a motorized Alps RK27 potentiometer, the PRO version uses a 256-step relay attenuator (0.4 dB per step) built with gas-filled reed relays. The result: perfect channel matching across the entire range, no channel imbalance at low volumes (a common issue with cheaper potentiometers), and minimal crosstalk. All other specifications – D/A converter, amplifier power, connections – are identical between both versions.

Highlights

  • 32-bit resampler/reclocker with up to 180 dB dynamic range for virtually jitter-free playback
  • ESS Technology ES9026 PRO DAC with 4× 32-bit converters per channel, –110 dB THD+N and 124 dB dynamic range
  • ±18 dB PRE-GAIN for optimal matching with any headphone/source combination
  • Precision volume control via 256-step relay attenuator (0.4 dB per step) for perfect channel matching with no imbalance at low volumes – plus balance control
  • Four amplifier stages with 6400 mW @ 50 Ω and 21 V RMS @ 600 Ω
  • DC and overload monitoring, delayed output enabling

Violectric DHA V590² PRO view

Connections

  • Analogue inputs: 2× RCA (unbalanced), 1× XLR (balanced)
  • Digital inputs: XLR, coax, optical (24 bit/192 kHz), USB (PCM up to 32 bit/384 kHz, DSD 64–256)
  • Headphone outputs: 1× 4-pin XLR (balanced), 1× Pentaconn 4.4 mm (balanced), 1× 6.3 mm (1/4") jack (unbalanced)
  • Line-out: 1× RCA (unbalanced), 1× XLR (balanced) (±18 dB adjustable)

With premium components — including two toroidal transformers and more than 35,000 µF of filter capacitance — plus a solid black anodized front panel, the DHA V590² PRO becomes the audiophile hub of any high-end system.

Remote control included for input selection, resampling mode, volume, output selection and mute.

Not sure if the Violectric DHA V590² PRO is the right model for you? In our The Great Violectric Model Comparison we put every model in the lineup head-to-head.

Who is the DHA V590² PRO best suited for?

The DHA V590² PRO is the flagship of the entire Violectric lineup, aimed at listeners who expect both a complete DAC-amplifier hub and perfect channel matching at every volume. Ideal for audiophile reference setups where no compromises are accepted on either the converter or the volume control.

Technical Data

Analogue Inputs

Inputs 1× XLR female (balanced), 2× RCA (unbalanced)
Max. input voltage +21 dBu
Input impedance 10 kΩ

Digital Inputs

S/PDIF 1× balanced, 1× coaxial, 1× optical – up to 24 bit / 192 kHz
USB PCM up to 32 bit / 384 kHz, DSD 64–256
Resampling / Reclocking 32 bit, up to 180 dB dynamic range
D/A converters 32 bit, 4 converters per channel, –110 dB THD+N, 124 dB dynamic range

Line Outputs

Outputs 1× XLR male (balanced), 1× RCA (unbalanced)
Line-out gain –18 / –12 / –6 / 0 / +6 / +12 / +18 dBr
Max. output voltage +21 dBu
Output impedance 1 Ω

Headphone Amplifier

Nominal input sensitivity +6 dBu
Feedback gain 0 dB unbalanced / +6 dB balanced
PRE-GAIN –18 / –12 / –6 / 0 / +6 / +12 / +18 dBr
Frequency range 5 Hz – 250 kHz (–0.5 dB)
Balance ±6 dB
Output impedance 0.15 Ω unbalanced / 0.3 Ω balanced
Damping factor (50 Ω load) 320 unbalanced / 160 balanced
Dynamic range >131 dB (A-weighted)
Noise < –103 dBu (A-weighted)
THD+N (1 kHz / 2×10 V / 100 Ω = 1 W) < –102 dB / < 0.0008 %
THD+N (1 kHz / 2×4 V / 32 Ω = 0.5 W) < –100 dB / < 0.001 %
Crosstalk –105 dB (1 kHz) / –100 dB (15 kHz)
Headphone outputs 1× 4-pin XLR, 1× Pentaconn (4.4 mm), 1× 1/4" (6.3 mm) jack
