JDS Labs Atom Amp 2 (with EU power supply) – Level Audio

At a glance

Device type
Headphone amplifier
Amplifier technology
Solid-state
Headphone outputs
4.4 mm, 6.3 mm
Built-in DAC
No
Power
2.65 W @ 32 Ω · 286 mW @ 300 Ω

All technical data

JDS Labs

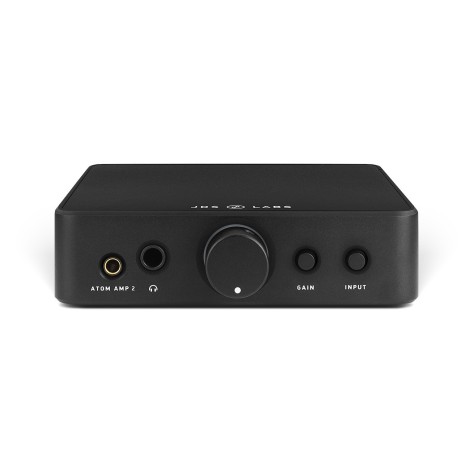

JDS Labs Atom Amp 2 (with EU power supply)

€219.00
Tax included

Delivery in approx. 2–3 weeks (shipped from the USA)Delivery in approx. 2 weeks

Housed in an aluminum chassis with an easier to grip knob, featuring both 4.4mm and 6.35mm headphone jacks, failsafe DC protection, and octo-buffers pumping out more than twice the power of Atom Amp+. No noise. Front-mounted controls. Hand matched potentiometers. Custom engravable. Atom Amp 2, your new go-to headphone amp.

JDS Labs
Sorry, This item is out of stock.
Delivery in approx. 2–3 weeks (shipped from the USA)

Compare

Will it drive your headphones? Add this amplifier and a pair of headphones to the comparison. “Do they match?” shows whether the power is sufficient.

Secure Payment VISA MC PayPal GPay

Also available as a set

Matching cable

At a glance

Device type
Headphone amplifier
Amplifier technology
Solid-state
Headphone outputs
4.4 mm, 6.3 mm
Built-in DAC
No
Power
2.65 W @ 32 Ω · 286 mW @ 300 Ω

All technical data

JDS Labs Atom Amp 2

Powerful, clean, and elegant — with optional free laser engraving

Powerful, clean and elegant. As usual with JDS Labs, it can be laser engraved for free — and it comes with a set of genuinely useful conveniences:

Features

JDS Labs Atom Amp 2 (with EU power supply) view

All-metal enclosure

Atom Amp 2 is housed in an aluminium chassis with a grippy metal volume knob. The anodised finish can be personalised with a custom engraving at no charge — add text or artwork in the cart.

Serious power

While most headphones only need milliwatts, Atom Amp 2’s Okto buffers deliver over 2.6 W per channel of exceptionally clean, low-distortion output.

Two inputs, two outputs

Atom Amp 2 replaces the need for a separate headphone amp and preamp. Connect up to two sources and switch between 3.5 mm and RCA at the press of a button. On the front, you’ll find both 6.35 mm (¼") and 4.4 mm headphone outputs for convenience.

Preamp outputs

When you unplug your headphones from the ¼" output, Atom Amp 2’s volume control can regulate the RCA preamp outputs — a great way to control the volume of active speakers.

Dual gain

Low gain at 1.0× with hand-matched potentiometers is ideal for sensitive IEMs. High gain, paired with the matching 2 VRMS Atom DAC 2, confidently drives demanding full-size headphones.

Top performance

Beyond transparent, Atom Amp 2 achieves the lowest noise floor of any Atom Amp so far, thanks to a 4-layer, star-ground layout and the Okto buffer stage.

Technical Specifications

Performance

Frequency response, 10 Hz – 20 kHz ± 0.01 dB
SINAD @ 2 VRMS, 1 kHz (RCA) 120 dB
SINAD @ 50 mV, 1 kHz (RCA) 93 dB
SNR (20 – 20 kHz) 124 dB
IMD SMPTE -97 dB
Noise (20 – 20 kHz) 1.33 μV
Crosstalk @ 10 kHz -101 dB
Output impedance 0.7 Ω
Channel balance ± 0.56 dB
Max continuous power @ 600 Ω 143 mW (9.28 VRMS)
Max continuous power @ 300 Ω 286 mW (9.27 VRMS)
Max continuous power @ 150 Ω 570 mW (9.25 VRMS)
Max continuous power @ 32 Ω 2.65 W (9.22 VRMS)

Connectivity

Headphone output 4.4 mm and 6.35 mm (¼")
Analog inputs RCA and 3.5 mm
Preamp output RCA

Dimensions

Case dimensions 145 × 131 × 34 mm
Weight 480 g

Configuration

Dual gain 1× and 4.7×
Volume pot taper 15A, hand-matched gangs

Data sheet

Device type
Headphone amplifier
Amplifier technology
Solid-state
Built-in DAC
No
Power into 32 Ω
2.65 W @ 32 Ω
Power into 300 Ω
286 mW @ 300 Ω
Headphone outputs
4.4 mm, 6.3 mm
Balanced output
No
Inputs
RCA, 3.5 mm
Output impedance
0.7 Ω
Pre-amp output
Yes
Weight
480 g
